Bellhousing

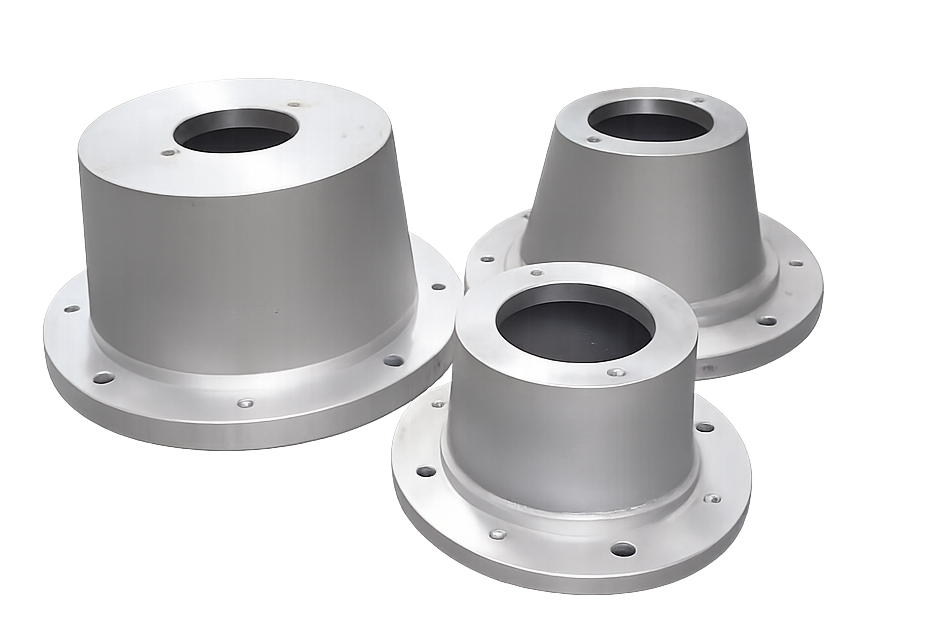

Bellhousings AluminiumSize 160 – 660 / Circular and rectangular type on the pump side
Motor and oil pump shaft centred.
Suitable for the connection between IEC motor and oil pump.
The model of the bell housing is applicable to IEC motors ranging from 0.37kw (IEC71) B5/B35 to 200kw (IEC315)B5/B35.And it is suitable for common oil pumps available on the market, such as Bosh Rexroth,Parker,Danfoss,etc.
Bellhousing available horizontal mounting and Vertical mounting.
Available from stock for the most common motor-pump-combinations

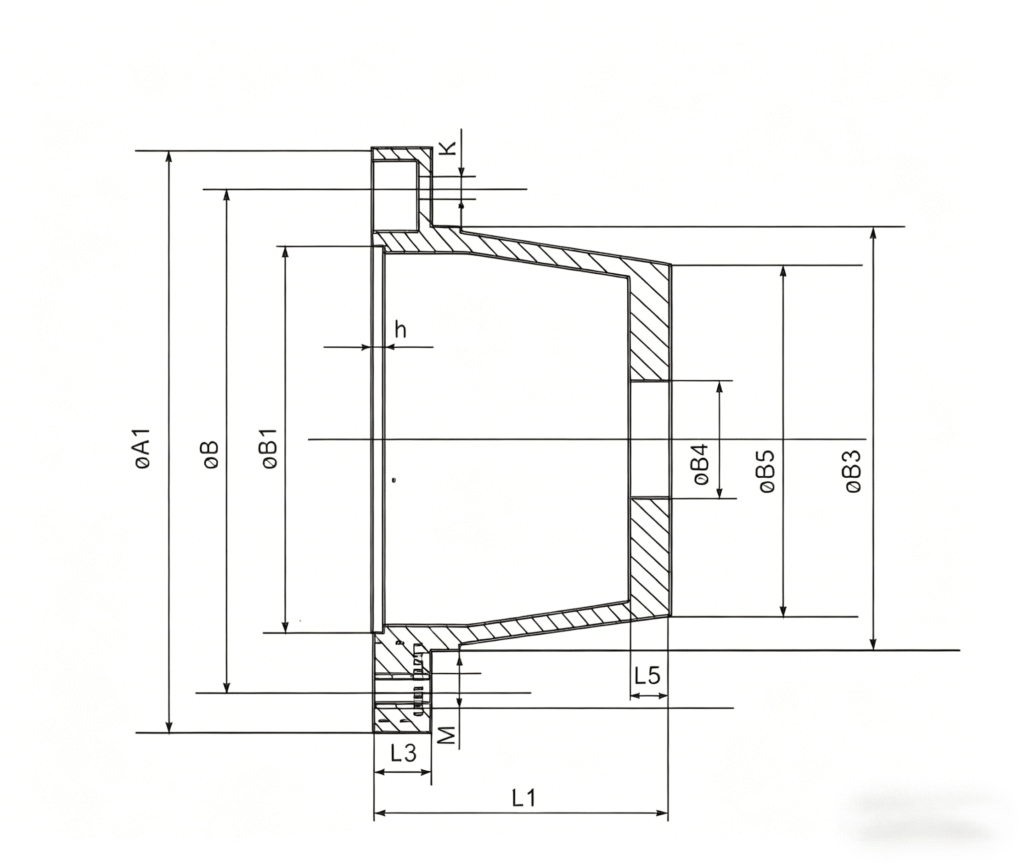

Type	A1	B	B1	L1	IEC B5
B200/105/x	200	165	130	105	80/90
B250/130/x	250	215	180	130	100/112
B300/150/x	300	265	230	150	132
B350/204/x	350	300	250	204	160/180
B400/204/x	400	350	300	204	200
B450/245/x	450	400	350	245	225
B550/265/x	550	500	450	265	250/280
